Switching Pro 126
Programmable Vehicle Power Control System
A fully programmable switching system with keypad that overcomes the need for fuse boxes and battery guard with both features built into the system.
The system is designed to activate 10 positive outputs rated at 15 amps, 2 positive outputs rated at 25 amps and 6 negative outputs at 1.7 amps.
Datacom Switching Pro 126 is fully programmable. Plug PC access to the programme function enables the user to programme each switched or non switched circuits to power various accessories by using the programme menu system. Programme selection enables the user to set battery cut off and power up voltage for each circuit enabling power cut off delay on systems such as beacons and interior lights. Programmer also enables the system to set, connect and disconnect fused voltage on each circuit overcoming the need to build in separate fuse box assemblies.
Two output to control hand wash provided from ECU with maximum current up to 25 Amp each. High current accessories such as inverters can be controlled by using separate relays or solenoid controlled by the Datacom Switching Pro 126 system negative output current up to 1.7 Amp
On multiple run builds the Datacom Switching Pro 126 can be supplied fully programmed. On any volume builds the programme can be preset and stored to enable quick download programming of subsequent builds.
Features
12 programmable positive outputs and 6 negative outputs.
7 programmable inputs between positive and negative.
1 positive ignition and 1 negative ignition input.
Programmable Battery Guard cut off for each output, program safety beacons stay on longer.
Programmable fuses for each output, no need for fuse board.
Control up to 2 hand wash systems on one vehicle.
Control inverter through solenoid.
Build in run lock control.
Control battery to battery charge through solenoid.
Control switch beacons / flashers on beacons only through on keypad switch.
Control full system shut down cut off if no system activity.
Each output only live when programmed, significant reduction in harness layouts.
AMP multi pin plug can be supplied with system or sourced directly to fit to your harnesses, system program plug and play.
CAN Data Link through Datacom CAN Data Logger.
Main ECU outputs only become live after programming.

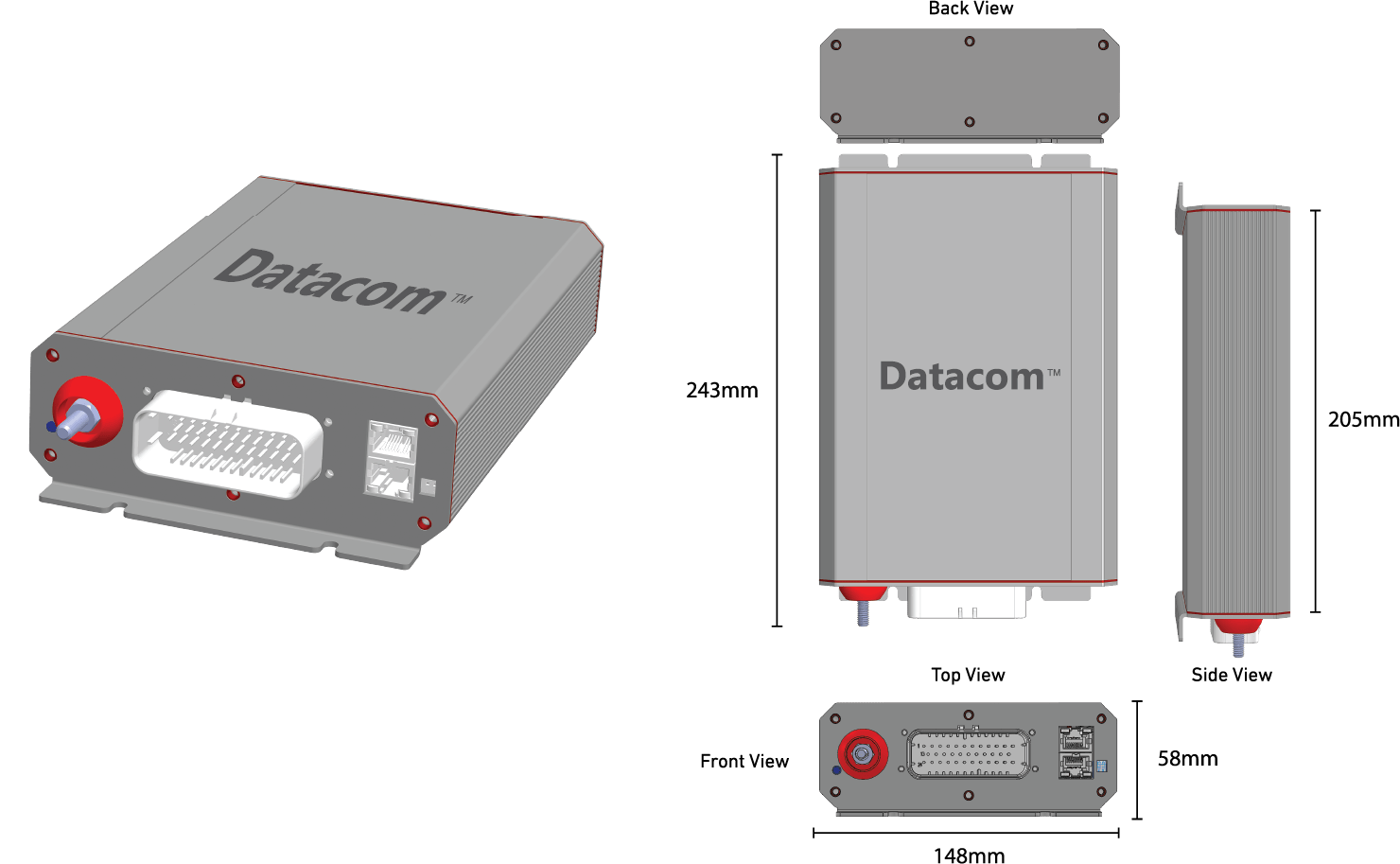

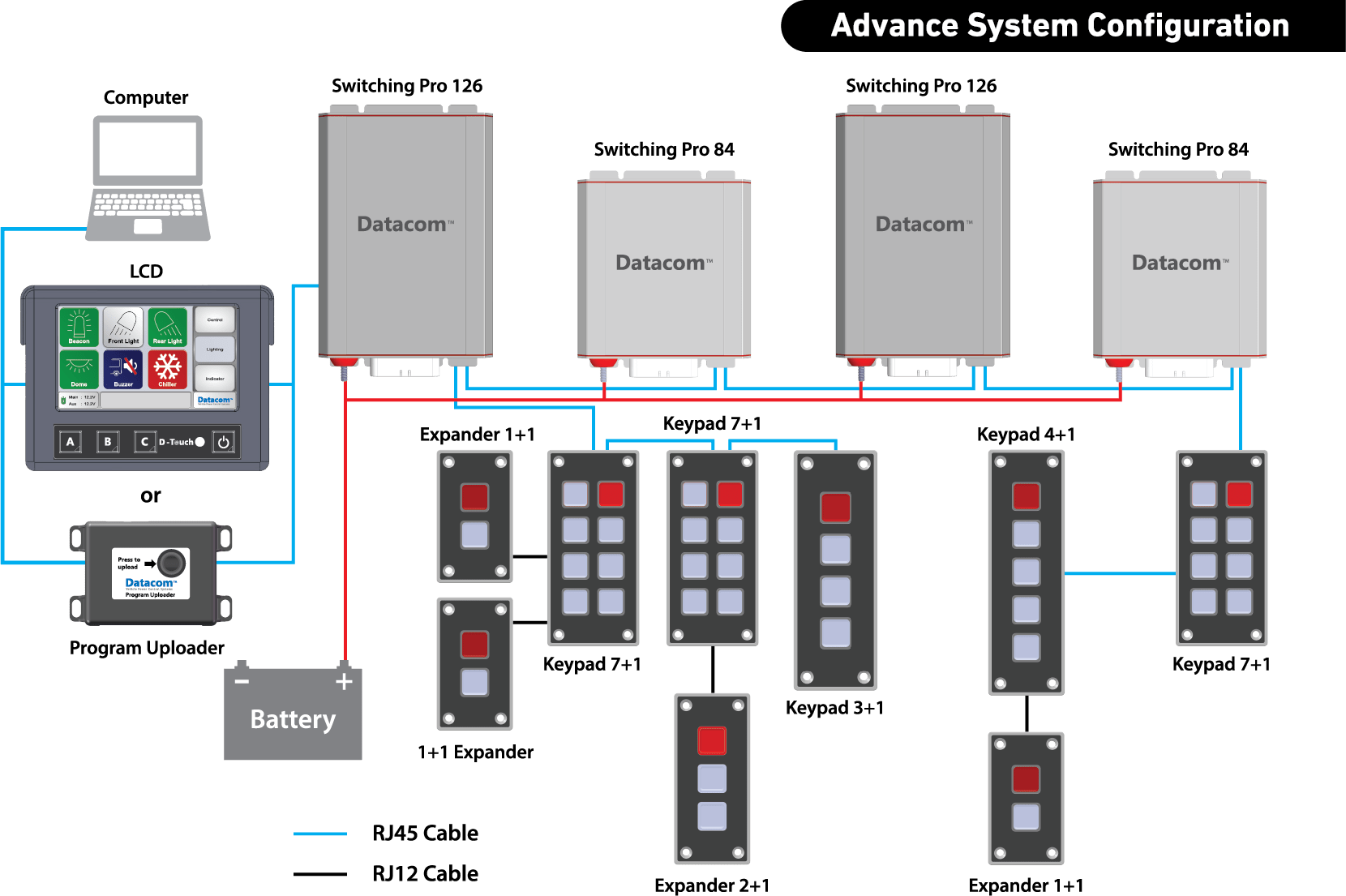

Advance System Configuration
Technical Specification
Description Value
Power lug input 1
Ignition inputs (+)/(-) 1
Positive / Negative inputs 7
Positive outputs 12
Negative outputs 6
ADC input for detection voltage between factory and auxiliary battery 2
CAN Bus connection to vehicle 1
RJ45 Connector to keypad and multiple ECU 2
35 Pin Connector 1
Datacom has full type approval tested by TUVRheinland
